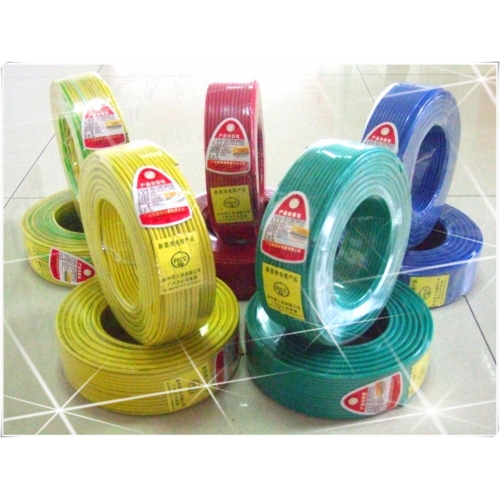

PVC聚氯乙烯絕緣電線
Upload OF：2016-03-31 09-30-28 Updated：admin
一、產品性能 1.產品依據GB5023,JB8734國家標準。
2.電線浸水1小時，經受交流50Hz250V（450/750V）、2000V（300/500V）電壓實驗5分鐘不擊穿。 二、使用特性 1.本產品適用與交流額定電壓450/750V及以下動力、日用電器、儀器儀表及電信設備等線路。
2.電線長期工作溫度應不超過70℃,BV-90型應不超過90℃。
3.
電線的敷設溫度應不低于0℃；允許彎曲半徑；電線外徑（D）小于25mm者不小于4D；電線外徑（D）為25mm及以上者應不小于6（D）。 |
|
三、 型號規格
型號 | 名稱 | 額定電壓 | 總數 | 標稱截面 | 227IEC01（BV） | 一般用途單芯硬導體無護套電纜 | 450/750 | 1 | 1.5-400 | 227IEC02（RV） | 一般用途單芯軟導體無護套電纜 | 450/750 | 1 | 1.5-400 | 227IEC05（BV） | 內部布線用導體溫度為70℃的單芯實芯導體無護套電纜 | 300/500 | 1 | 0.5-1 | 227IEC06（RV） | 內部布線用導體溫度為70℃的單芯實芯軟導體無護套電纜 | 300/500 | 1 | 0.5-1 | 227IEC07（BV-90） | 內部布線用導體溫度為90℃的單芯實心導體無護套電纜 | 300/500 | 1 | 0.5-7.5 | 227IEC52（RRV） | 輕型聚氯乙烯護套軟線 | 300/300 | 2-3 | 0.5-0.75 | 227IEC53（RRV） | 普通聚氯乙烯護套軟線 | 300/500 | 2-5 | 0.75-2.5 | BLV | 鋁芯聚氯乙烯絕緣電纜 | 450/750 | 1 | 2.5-400 | BVR | 銅芯聚氯乙烯軟緣電纜 | 450/750 | 1 | 2.5-70 | BVVB | 銅芯聚氯乙烯絕緣聚氯乙烯護套扁形電纜 | 300/500 | 2-3 | 0.75-10 | BLVVB | 鋁芯聚氯乙烯絕緣聚氯乙烯護套扁形電纜 | 300/500 | 2-3 | 0.75-10 |
227IEC 01（BV）型電纜的綜合數據 導體標稱截面mm2 | 導體種類 | 絕緣厚度規定值mm | 平均外徑上限mm | 70℃時最小絕緣電阻MΩ.km | 1.5 | 1 | 0.7 | 3.3 | 0.011 | 1.5 | 2 | 0.7 | 3.4 | 0.010 | 2.5 | 1 | 0.8 | 3.9 | 0.010 | 2.5 | 2 | 0.8 | 4.2 | 0.009 | 4 | 1 | 0.8 | 4.4 | 0.0085 | 4 | 2 | 0.8 | 4.8 | 0.0077 | 6 | 1 | 0.8 | 4.9 | 0.0070 | 6 | 2 | 0.8 | 5.4 | 0.0065 | 10 | 1 | 1.0 | 6.4 | 0.0070 | 10 | 2 | 1.0 | 6.8 | 0.0065 | 16 | 2 | 1.0 | 8.0 | 0.0050 | 25 | 2 | 1.2 | 9.8 | 0.0050 | 35 | 2 | 1.2 | 11.0 | 0.0040 | 50 | 2 | 1.4 | 13.0 | 0.0045 | 70 | 2 | 1.4 | 15.0 | 0.0035 | 95 | 2 | 1.6 | 17.0 | 0.0035 | 120 | 2 | 1.6 | 19.0 | 0.0032 | 150 | 2 | 1.8 | 21.0 | 0.0032 | 185 | 2 | 2.0 | 23.5 | 0.0032 | 240 | 2 | 2.2 | 26.5 | 0.0032 | 300 | 2 | 2.4 | 29.5 | 0.0030 | 400 | 2 | 2.6 | 33.5 | 0.0028 |
227IEC 02（RV）型電纜的綜合數據 導體標稱截面mm2 | 絕緣厚度規定值mm | 平均外徑上限mm | 70℃時最小絕緣電阻MΩ.km | 1.5 | 0.7 | 3.5 | 0.010 | 2.5 | 0.8 | 4.2 | 0.009 | 4 | 0.8 | 4.8 | 0.007 | 6 | 0.8 | 6.3 | 0.006 | 10 | 1.0 | 7.6 | 0.0056 | 16 | 1.0 | 8.8 | 0.0046 | 25 | 1.2 | 11.0 | 0.0044 | 35 | 1.2 | 12.5 | 0.0038 | 50 | 1.4 | 14.5 | 0.0037 | 70 | 1.4 | 17.0 | 0.0032 | 95 | 1.6 | 19.0 | 0.0032 | 120 | 1.6 | 21.0 | 0.0029 | 150 | 1.8 | 23.5 | 0.0029 | 185 | 2.0 | 26.0 | 0.0029 | 240 | 2.2 | 29.5 | 0.0028 |
227IEC 53（RVV）型軟線的綜合數據 導體芯數和標稱截面mm2 | 絕緣厚度規定值mm | 護套厚度規定值mm | 平均外形尺寸 | 70℃時最小絕緣電阻MΩ.km | 下限mm | 上限mm | 2×0.75 | 0.6 | 0.8 | 6.0或3.8×6.0 | 7.6或5.2×7.6 | 0.011 | 2×1 | 0.6 | 0.8 | 6.4 | 8.0 | 0.010 | 2×1.5 | 0.7 | 0.8 | 7.4 | 9.0 | 0.010 | 2×2.5 | 0.8 | 1.0 | 8.9 | 11.0 | 0.009 | 3×0.75 | 0.6 | 0.8 | 6.4 | 8.0 | 0.011 | 3×1 | 0.6 | 0.8 | 6.8 | 8.4 | 0.010 | 3×1.5 | 0.7 | 0.9 | 8.0 | 9.8 | 0.010 | 3×2.5 | 0.8 | 1.1 | 9.6 | 12.0 | 0.009 | 4×0.75 | 0.6 | 0.8 | 6.8 | 8.6 | 0.011 | 4×1 | 06. | 0.9 | 7.6 | 9.4 | 0.010 | 4×1.5 | 0.7 | 1.0 | 9.0 | 11.0 | 0.010 | 4×2.5 | 0.8 | 1.1 | 10.5 | 13.0 | 0.009 | 5×0.75 | 0.6 | 0.9 | 7.4 | 9.6 | 0.011 | 5×1 | 0.6 | 0.9 | 8.3 | 10.0 | 0.010 | 5×1.5 | 0.7 | 1.1 | 10.0 | 12.0 | 0.010 | 5×2.5 | 0.8 | 1.2 | 11.5 | 14.0 | 0.009 |
|
BLV型450/750V鋁芯聚氯乙烯絕緣電纜 導體標稱截面mm2 | 實芯導體或絞合導體中單線最少根數 | 絕緣厚度規定值mm | 平均外徑上限mm | 20℃時導體電阻最大值Ω/km | 70℃時最小絕緣電阻MΩ.km | 2.5 | 1 | 0.8 | 3.9 | 12.1 | 0.010 | 4 | 1 | 0.8 | 4.4 | 7.41 | 0.0085 | 6 | 1 | 0.8 | 5.0 | 4.61 | 0.0070 | 10 | 7 | 1.0 | 6.7 | 3.08 | 0.0065 | 16 | 7 | 1.0 | 7.8 | 1.91 | 0.0050 | 25 | 7 | 1.2 | 9.7 | 1.20 | 0.0050 | 35 | 7 | 1.2 | 10.9 | 0.868 | 0.0040 | 50 | 19 | 1.4 | 12.8 | 0.641 | 0.0045 | 70 | 19 | 1.4 | 14.6 | 0.443 | 0.0035 | 95 | 19 | 1.6 | 17.1 | 0.320 | 0.0035 | 120 | 37 | 1.6 | 18.8 | 0.253 | 0.0032 | 150 | 37 | 1.8 | 20.9 | 0.206 | 0.0032 | 185 | 37 | 2.0 | 23.3 | 0.164 | 0.0032 | 240 | 61 | 2.2 | 26.6 | 0.125 | 0.0032 | 300 | 61 | 2.4 | 29.6 | 0.100 | 0.0030 | 400 | 61 | 2.6 | 33.2 | 0.0778 | 0.0028 |
BVR型450/750V銅芯聚氯乙烯絕緣軟電纜 導體標稱截面mm2 | 絞合導體單線最少根數 | 絕緣厚度規定值mm | 平均外徑上限mm | 20℃時導體電阻最大值Ω/km | 70℃時最小絕緣電阻MΩ.km | 銅芯 | 鍍錫銅芯 | 2.5 | 19 | 0.8 | 4.1 | 7.41 | 7.56 | 0.011 | 4 | 19 | 0.8 | 4.8 | 4.61 | 4.70 | 0.009 | 6 | 19 | 0.8 | 5.3 | 3.08 | 3.11 | 0.0084 | 10 | 49 | 1.0 | 6.8 | 1.83 | 1.84 | 0.0072 | 16 | 49 | 1.0 | 8.1 | 1.15 | 1.16 | 0.0062 | 25 | 98 | 1.2 | 10.2 | 0.727 | 0.734 | 0.0058 | 35 | 133 | 1.2 | 11.7 | 0.524 | 0.529 | 0.0052 | 50 | 133 | 1.4 | 13.9 | 0.387 | 0.391 | 0.0051 | 70 | 189 | 1.4 | 16.0 | 0.268 | 0.270 | 0.0045 |
BVV、BLVV型300/500V銅芯和鋁芯聚氯乙烯絕緣聚氯乙烯護套圓型電纜 標稱截面mm2 | 實心導體或絞合導體中單線根數 | 絕緣厚度規定值mm | 護套厚度規定值mm | 平均外徑mm | 20℃時導體電阻最大值Ω/km | 70℃時最小絕緣電阻MΩ.km | 下限 | 上限 | 銅芯 | 鍍錫銅芯 | 鋁芯 | 0.75 | 1 | 0.6 | 0.8 | 3.6 | 4.4 | 24.5 | 24.8 |
| 0.012 | 1.0 | 1 | 0.6 | 0.8 | 3.7 | 4.5 | 18.1 | 18.2 |
| 0.011 | 1.5 | 1 | 0.7 | 0.8 | 4.2 | 5.0 | 12.1 | 12.2 |
| 0.011 | 1.5 | 7 | 0.7 | 0.8 | 4.3 | 5.2 | 12.1 | 12.2 |
| 0.010 | 2.5 | 1 | 0.8 | 0.8 | 4.8 | 5.7 | 7.41 | 7.56 | 12.1 | 0.010 | 2.5 | 7 | 0.8 | 0.8 | 4.8 | 5.9 | 7.41 | 7.56 |
| 0.009 | 4 | 1 | 0.8 | 0.9 | 5.4 | 6.5 | 4.61 | 4.70 | 7.41 | 0.0085 | 4 | 7 | 0.8 | 0.9 | 5.5 | 6.8 | 4.61 | 4.70 |
| 0.0077 | 6 | 1 | 0.8 | 0.9 | 5.9 | 7.1 | 3.08 | 3.11 | 4.61 | 0.0070 | 6 | 7 | <, DIV align=center>0.8 | 0.9 | 6.0 | 7.3 | 3.08 | 3.11 |
| 0.0065 | 10 | 7 | 1.0 | 0.9 | 7.3 | 8.8 | 1.83 | 1.84 | 3.08 | 0.0065 |
BVVB,BLVVB型300/500V銅芯和鋁芯聚氯乙烯絕緣聚氯乙烯護套扁形電纜 芯數×標稱截面mm2 | 實心導體或絞合導體中單線根數 | 絕緣厚度規定值mm | 護套厚度規定值mm | 平均外形尺寸mm | 20℃時導體電阻最大值Ω/km | 70℃時最小絕緣電阻MΩ.km | 下限 | 上限 | 銅芯 | 鍍錫銅芯 | 鋁芯 | 2×0.75 | 1 | 0.6 | 0.9 | 3.8×5.9 | 4.6×7.1 | 24.5 | 24.8 | - | 0.012 | 2×1.0 | 1 | 0.6 | 0.9 | 3.9×6.1 | 4.8×7.4 | 18.1 | 18.2 | - | 0.011 | 2×1.5 | 1 | 0.7 | 0.9 | 4.4×7.0 | 5.3×8.5 | 12.1 | 12.2 | - | 0.011 | 2×2.5 | 1 | 0.8 | 1.0 | 5.1×8.4 | 6.2×10.1 | 7.41 | 7.56 | 12.1 | 0.010 | 2×4 | 1 | 0.8 | 1.0 | 5.6×9.2 | 6.7×11.1 | 4.61 | 4.70 | 7.41 | 0.0085 | 2×4 | 7 | 0.8 | 1.0 | 5.7×9.5 | 6.9×11.5 | 4.61 | 4.70 | - | 0.008 | 2×6 | 1 | 0.8 | 1.1 | 6.2×10.4 | 7.5×12.5 | 3.08 | 3.11 | 4.61 | 0.0070 | 2×6 | 7 | 0.8 | 1.1 | 6.4×10.8 | 7.8×13.0 | 3.08 | 3.11 | - | 0.0065 | 2×10 | 7 | 1.0 | 1.2 | 7.9×13.4 | 9.5×16.2 | 1.83 | 1.84 | 3.08 | 0.0065 | 3×0.75 | 1 | 0.6 | 0.9 | 3.8×7.9 | 4.6×9.6 | 24.5 | 24.8 | - | 0.012 | 3×1.0 | 1 | 0.6 | 0.9 | 3.9×8.4 | 4.8×10.1 | 18.1 | 18.2 | - | 0.011 | 3×1.5 | 1 | 0.7 | 0.9 | 4.4×9.6 | 5.3×11.7 | 12.1 | 12.2 | - | 0.011 | 3×2.5 | 1 | 0.8 | 1.0 | 5.1×11.6 | 6.2×14.0 | 7.41 | 7.56 | 12.1 | 0.010 | 3×4 | 1 | 0.8 | 1.1 | 5.8×13.1 | 7.0×15.8 | 4.61 | 4.70 | 7.41 | 0.0085 | 3×4 | 7 | 0.8 | 1.1 | 5.9×13.5 | 7.1×16.3 | 4.61 | 4.70 | - | 0.008 | 3×6 | 1 | 0.8 | 1.1 | 6.2×14.5 | 7.5×17.5 | 3.08 | 3.11 | 4.61 | 0.0070 | 3×6 | 7 | 0.8 | 1.1 | 6.4×15.1 | 7.8×18.2 | 3.08 | 3.11 | - | 0.0065 | 3×10 | 7 | 1.0 | 1.2 | 7.9×19.0 | 9.5×23.0 | 1.83 | 1.84 | 3.08 | 0.0065 |
|
